Oxford Mermaid Bath Hoist - End Fit
with Standard Seat Kit
Product Details

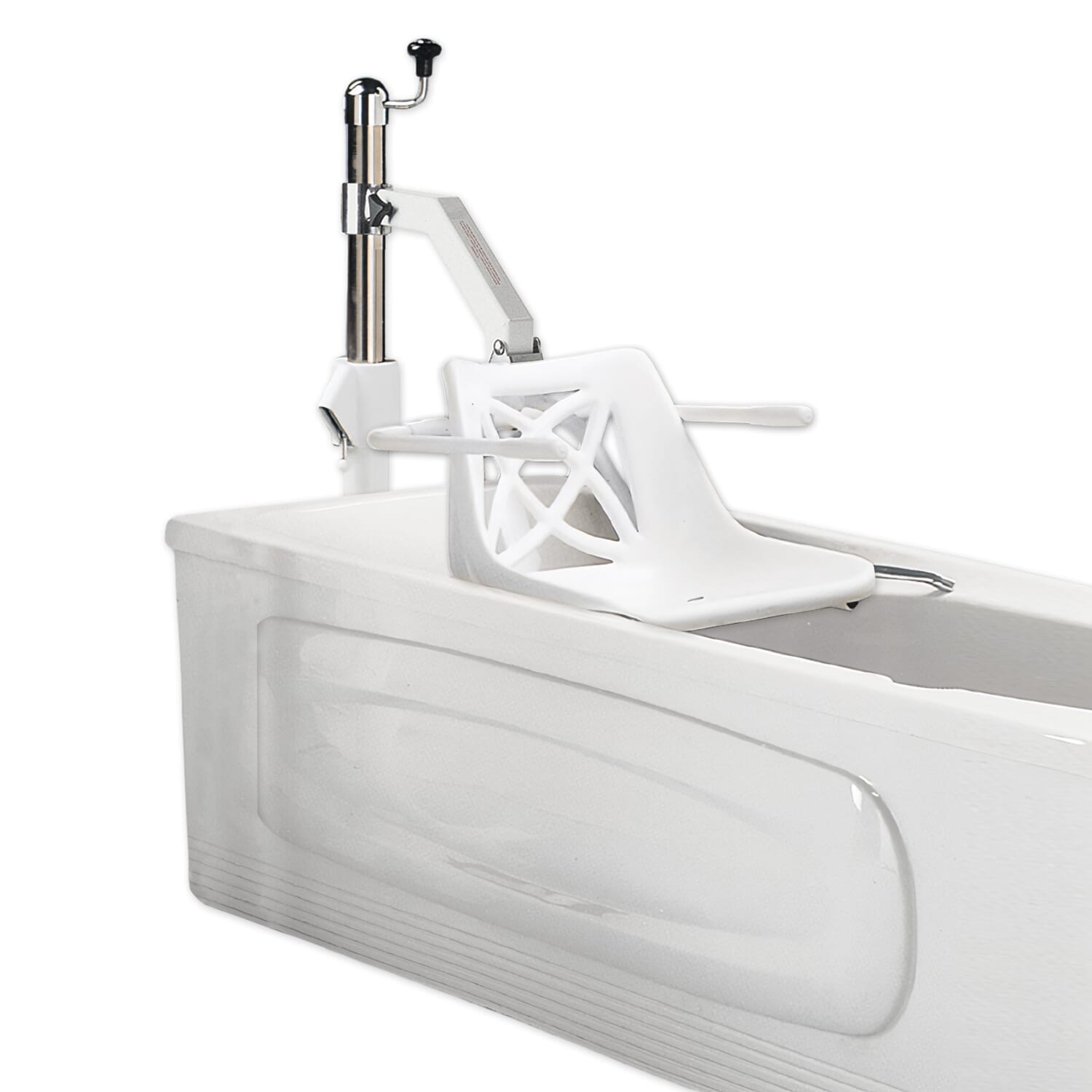

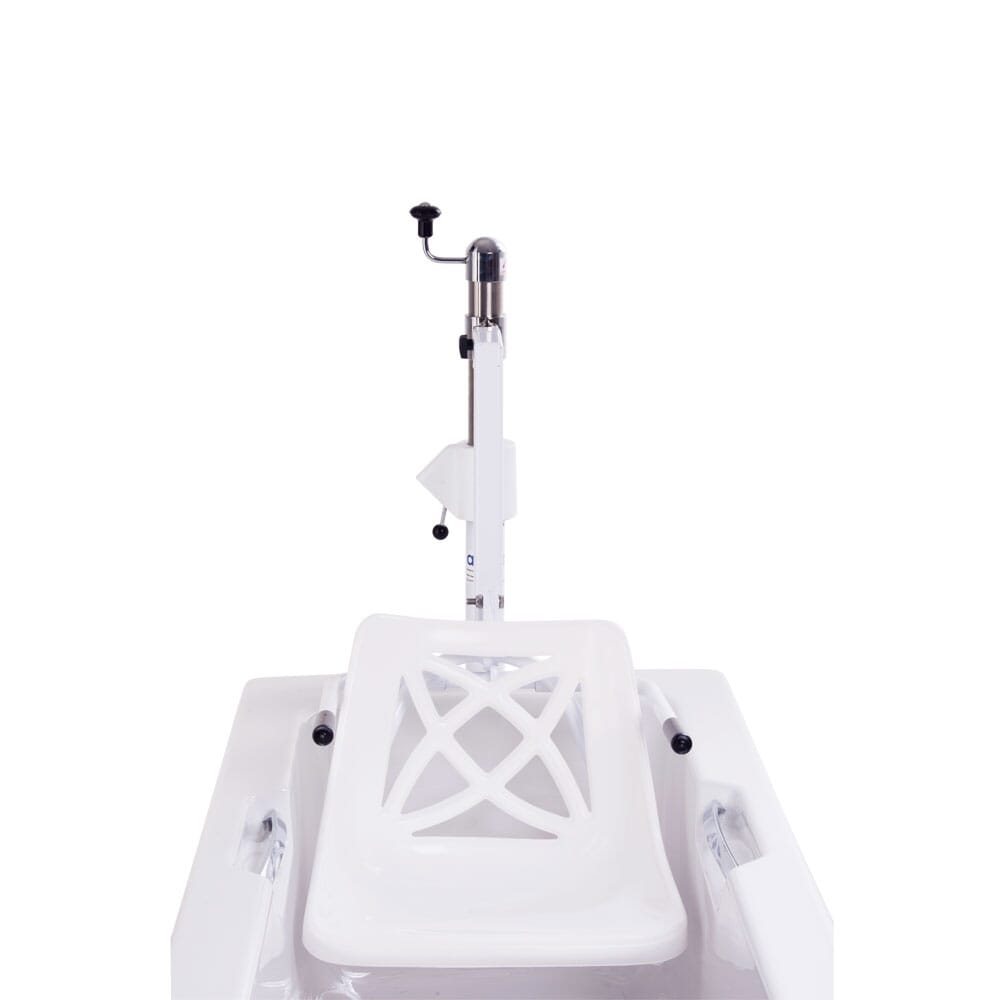

This Oxford Mermaid Bath Hoist is a manual bath hoist that has been designed to be positioned at the either end of the bath, and provides a safe and comfortable way of transferring users into and out of the bath. The hoist is very easy to operate by the carer, who simply uses the winding handle to gently lower the user into the bath once safely in position on the seat. When the user has finished bathing, the process is simply reversed and the carer can slowly raise the user back out of the bath with ease.
The hoists seat features a range of drainage holes and an ergonomically designed shape to ensure maximum comfort for the user at all times, and is fitted with a lap belt, that fastens securely round the users waist, and locking arms to prevent the possibility of the user slipping out of the chair.
This manually operated bath hoist is designed to be situated at either end of the bath and is suitable for use on wooden, tiled, or concrete floors. All the necessary fittings for securing the hoist to the floor are included with the hoist, but we would reccomend that fitting was carried out by a skilled tradesman.
This is a high quality product, both in its design and in the high standard of its construction, which will offer years of reliable use, giving the user real peace of mind. The hoists very simple, straight forward design, makes the amount of servicing and maintenance required, minimal, and reliability is further enhanced by the use of high-grade, quality components.
This manual bath hoist is designed with comfort, safety and durability in mind, and is a fantastic addition to the bathroom of anyone who struggles to gain access to bathing facilities. Perfect for the home, Oxford bathing lifts are also suitable for use in a multitude of environments, this includes care homes, hospitals, hospices, assisted living, nursing homes, rehabilitation centres, leisure centres, and any establishment in need of high quality hoist.

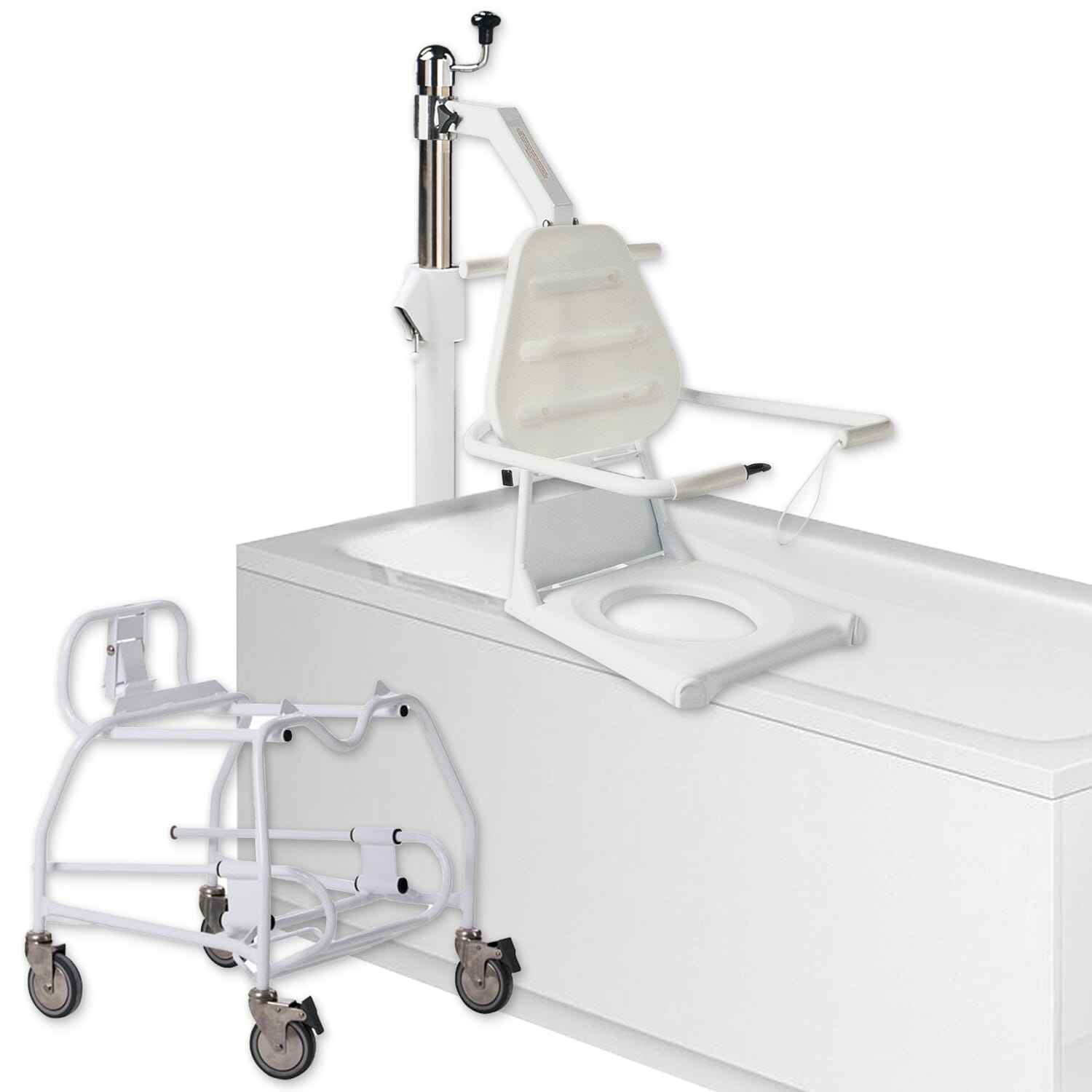

The mobile Oxford Ranger system is a versatile solution for patient transfers, specifically designed for use with the Oxford Mermaid Bath Hoist. It ensures the safe and efficient movement of patients to and from the bath, providing peace of mind for both patients and caregivers. The system includes a comfortable seating area, swivel castors with supportive arms and adjustable footrests, enhancing patient comfort during transfers. This product is available for purchase directly from this section of the website.
Key User Benefits
- Provides a safe and comfortable way of transferring users into and out of the bath
- Very easy to operate, simply turn the winding handle to gently lower users into the bath
- Awell drained and ergonomically designed seat gives maximum user comfort
- A high quality product, which will give years of reliable use, for real peace of mind
- Available in a wide range of manual and electric versions
Product Specifications
- Maximum height to base of seat: 740mm (29")
- Minimum height to base of seat: 140mm (5")
- Maximum seat travel: 485mm (19")
- Maximum seat width: 450mm (17")
- Maximum seat depth: 410mm (16")
- Maximum width between arms: 395mm (15.5")
- Maximum seat turning radius: 850mm (33.5")
- Minimum clearance required for transfer: 1000mm (39")
- Total hoist weight: 29 kgs (63.8 lbs)
- Maximum weight of user: 125 kgs (20 st)
