Alexander Raiser Parts

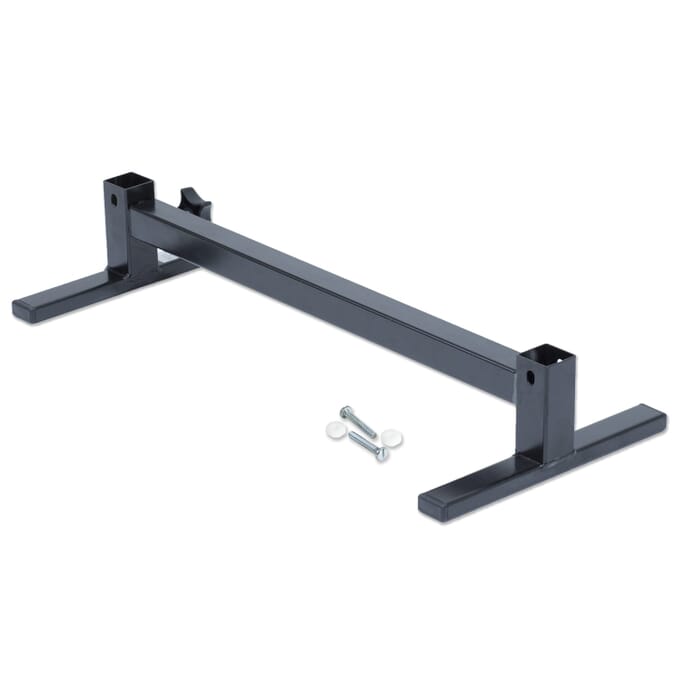

AL-01 Mk1 Frame
Product Details
Using these parts creates a framework that is capable of raising the majority of furniture available today including armchairs, settees, riser recliners & recliners and recliner settees with the added feature of granting total access from the front or back for a stand-aid, overchair table or trolley.
The golden rule for furniture raising is to support all legs, feet or castors that are in contact with the floor before the furniture is raised. Because of this a single base frame cannot raise a piece of furniture on its own, two would be required as a minimum. The total number may be larger depending on the furniture you are wanting to raise. You also need to add a fitting suitable for the feet or wheels of your furniture.
There are two main things to consider: the raising element and the fixing element.
There are three types of raiser available here:
- The Alexander Universal Raiser Mk1 has a simple, horizontal bar in contact with the floor;
- The new Alexander Universal Raiser Mk2 has a very thin elliptical foot which gives improved stability and a zero trip hazard;
- The Furniture Disc Raiser is a single leg raiser with a thin, trip-resistant base. Several of these can be used or it is often used with the Mk2 above to support a 5th leg.
After the raising element comes the type of fixing. These are the parts that fit your furniture, feet or castors. There's a wide choice available so please click on each option to review each image along with more information in the specifications below.
Lastly, for wider furniture, you may need an extender bar which increases each Universal Raiser frame up to 38cm in length.
You can download Alexander parts and fitting instructions here.
Money-saving ready to go pairs of raiser frames with the most popular fixings are also available using the following links:
AL-02 Alexander Universal Chair/Settee Raiser with Adjustable Height Frames is EA13460
AL-RC Alexander Universal Furniture Raiser Mk2 with Round Cups (6cm Diameter) is EA28687
AL-SQ-3 Alexander Universal Furniture Raiser Mk2 with Square Cups (9cm) is EA28689
AL-SQ-4 Alexander Universal Furniture Raiser Mk2 with Square Cups (11.5cm) is EA28690
AL-RR Alexander Universal Furniture Raiser Mk2 with Recliner & Riser Recliner fittings is EA28685
Key User Benefits
- Create your own kit to discreetly raise the height of an armchair, recliner chair, riser recliner, settee or recliner settee.
- Use two or more telescoping frames with a choice of attachments to ensure fitting to most sizes of furniture.
- Manufactured in the UK from high grade steel and easily attached and removed.
Product Specifications
- Manufactured from high grade tubular steel
- The parts do not affect the weight loading specification of the parent raiser frame
- All products are maintenance free and easily cleaned
- Autoclave friendly and recyclable
- AL-01 and AL-01H Frame shared specs:
- Adjustable height: 8.5 to 12.5 cm (3.35 to 4.9 inches)
- Length adjustment: 43 to 84 cm (16.9 to 33 inches)
- Maximum weight loading: 317 kg (50 stone) per raiser
- Maximum weight loading: 635 kg (100 stone) for a pair - AL-01 Alexander Universal Mk1 - Frame Only
- Raiser weight: 1.7kg - AL-01H Alexander Universal Mk2 - Frame Only
- Raiser weight: 1.9kg
- Footplate: 20cm wide x 14cm long (Elliptical)
- see AL-FT for a Rubber attachment for each footplate - AL-03 Furniture Disc Raiser:
- Ideal fifth leg suport
- Adjustable height: 8.5 to 12.5 cm (3.35 to 4.9 inches)
- Disc base diameter: 20 cm (7.9 inches)
- Max weight: 508 kg (80 stone) - EXT-B2 Extender Bar:
- May be used on all Morris & Alexander frames except AL-03 or CR-C2
- Extends a Universal frame by up to 38cm - AL-10 Round Cup 6cm diameter suitable for a single castor
- AL-06 is used to support the two castors located in the middle of a double divan bed. One Twin Cup will be required for each side of the bed
- AL-07 Attaches directly to the furnitures base framework using screws. 12 cm long
- AL08 For furniture with round or square legs. It can be clamped in position onto the furnitures leg for total security:
- AL08-3 is 9 x 9cm and suitable for legs up to 7cm wide
- AL08-4 is 11.5 x 11cm and suitable for legs up to 10cm wide - AL-09 & AL09-LG fix directly to the furniture legs/feet from underneath using the fixing screws supplied. It is particularly useful on large legged modern furniture. Size: 7.5cm square
- AL-09 is called a Flat Plate and raises from 8.5 to 12.5cm
- AL09-LG is the Flat Plate Tall and raises 13.5 to 17.5cm - AL11 Designed to accommodate legs that are set at an angle where the 4 sided cup might not be suitable:
- AL11-3 is 9 x 9cm and suitable for angled legs up to 7cm wide
- AL11-4 is 11.5 x 11cm and suitable for angled legs up to 10cm wide - AL-12 is a Recliner & Riser Recliner Attachment capable of fixing to most recliner or riser recliner chairs
- AL-13 is is a Twin Foot Recliner & Riser Recliner Attachment that is designed to support twin or double-up recliner feet that are situated too close together to work with our standard Alexander Recliner & Riser Recliner Attachment. These twin feet can often be seen in the middle sections of recliner settees, or on the four corners underneath a recliner chair.
