Oxford Calibre Mobile Hoist
Product Details

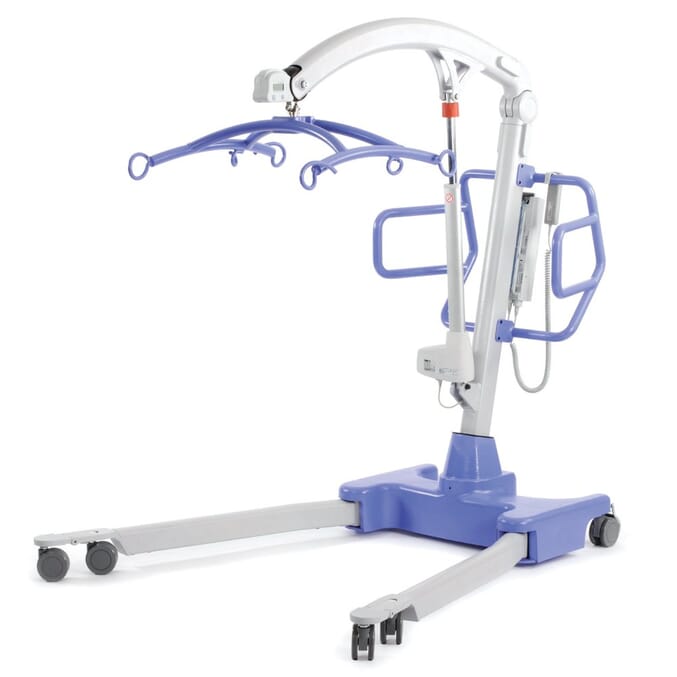

The Oxford Calibre Mobile Hoist is a thoughtfully designed patient lifting device, prioritising the safety and comfort of bariatric patients. It boasts exceptional strength and versatility, with an impressive lifting capacity of 385kg (60 stone), catering to the unique requirements of bariatric care in today's modern healthcare settings. This hoist is a dependable solution for a wide range of transfers, ensuring the safety of both caregivers and users.

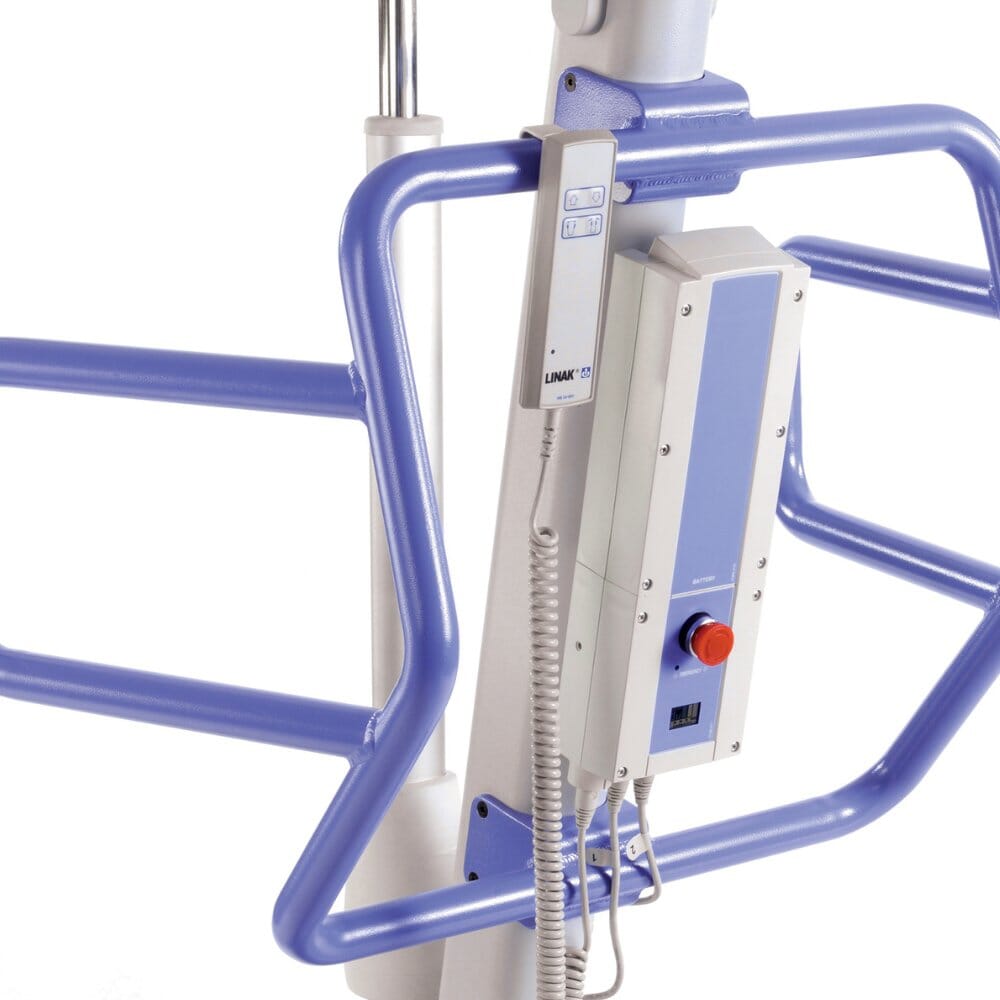

One of its standout features is the powered adjustable legs, which enhance manoeuvrability around wheelchairs, armchairs, and other furniture. This allows the hoist to approach closer for a safer and more efficient lifting process. Adjusting the legs is as simple as pressing a button on the hand control, eliminating the need for manual adjustments.

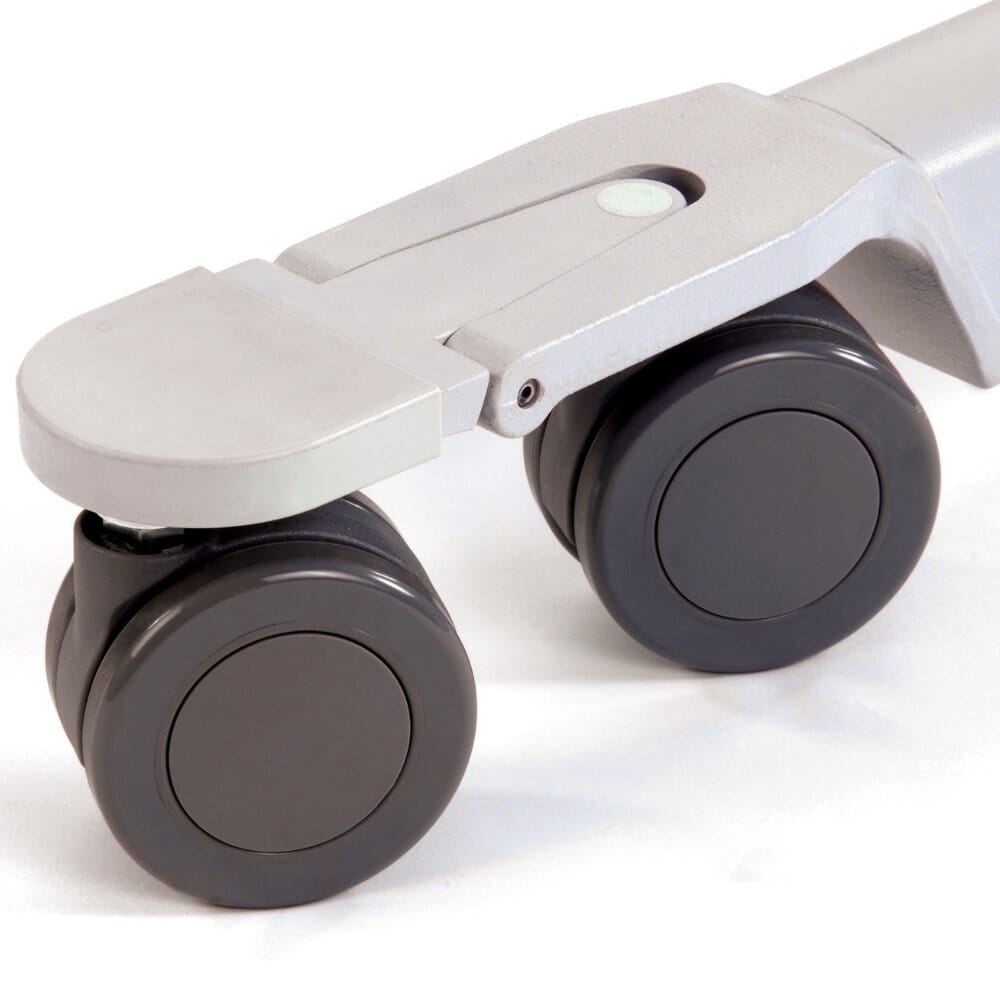

The large six-point cradle is specifically designed to securely and comfortably transport bariatric users. The twin pivoted front castors make it easy to move the hoist, even across uneven floor surfaces or challenging room thresholds. Additionally, the back castors are equipped with brakes to ensure stability and security during use. The inclusion of oversized push handles further enhances the hoist's manoeuvrability, surprising for a piece of equipment of its size.

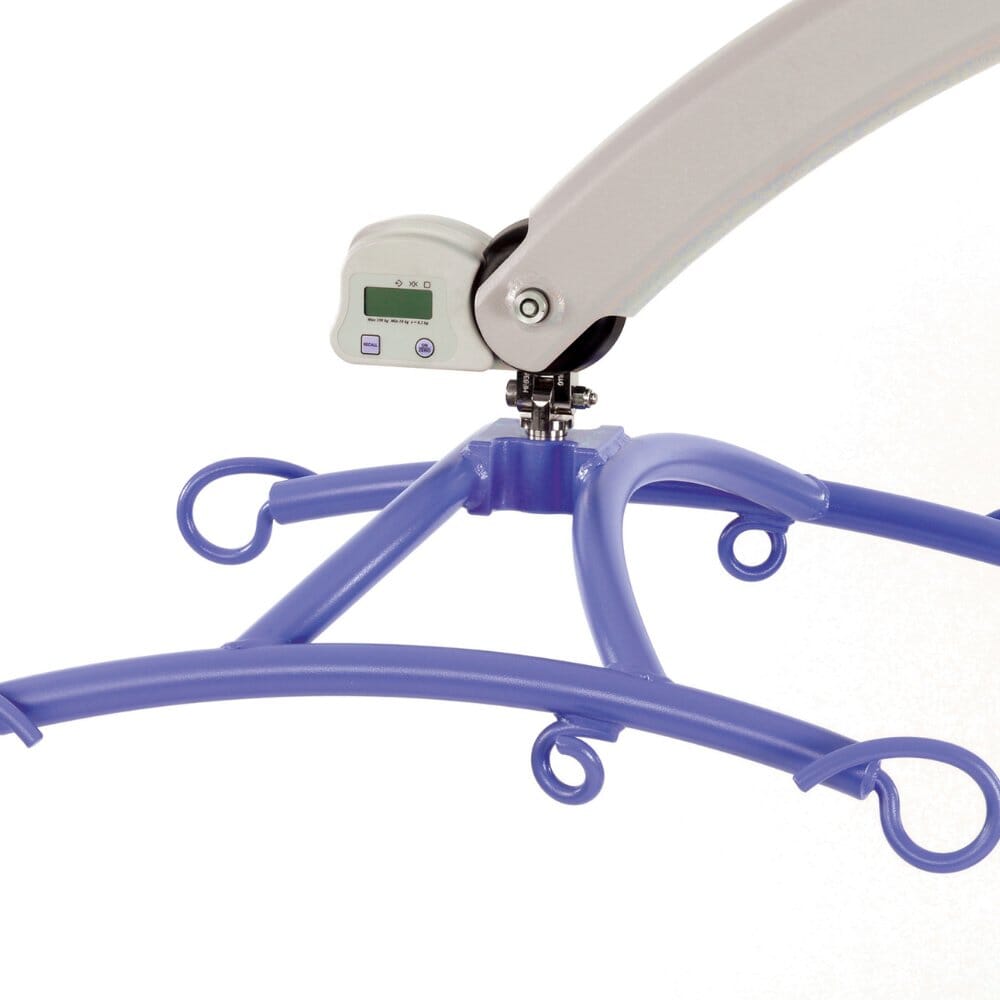

Notably, the Oxford Calibre Mobile Hoist incorporates integrated digital weigh scales, eliminating the need for additional equipment or unnecessary transfers. The scales are user-friendly, featuring simple controls and a clear dual display for accurate weight measurement.
For added peace of mind, this Mobile Hoist comes with a standard five-year manufacturer's warranty, ensuring complete user confidence in its reliability and performance.
Key User Benefits
- Ergonomically designed for safe lifting of bariatric patients
- Impressive lifting capacity of 385kg (60 stone)
- Versatile and sturdy construction
- Powered adjustable legs for easy access around furniture
- No manual leg adjustments required; controlled via hand button
- Six-point cradle designed for comfortable bariatric patient transfers
- Twin pivoted front castors for easy manoeuvrability
- Back castors equipped with brakes for stability
- Integrated digital weigh scales for accurate measurements
- Comes with a standard five-year manufacturer's warranty for user confidence
Product Specifications
- Turning radius: 1940mm (76.5'')
- External width (legs open): 1400mm (55.5'')
- Internal width (legs open): 1245mm (49'')
- External width (legs closed): 845mm (33.5'')
- Internal width (legs closed): 680mm (27'')
- Overall height of legs: 115mm (5'')
- Ground clearance: 15mm (0.5'')
- Front twin castors: 100mm (4'')
- Rear braked castors: 100mm (4'')
- Maximum length: 1700mm (67'')
- Minimum length: 1625mm (64'')
- Maximum height: 2250mm (88.5'')
- Minimum height: 1590mm (62.5'')
- Maximum height to attachment point: 1930mm (76'')
- Minimum height to attachment point: 755mm (30'')
- Height at maximum reach: 1710mm (67.5'')
- Reach at maximum height: 710mm (28'')
- Reach at minimum height: 660mm (26'')
- Maximum reach: 940mm (37'')
- Mobile Hoist weight: 112kg (17.5 stone)
- Maximum user weight: 385kg (60 stone)
