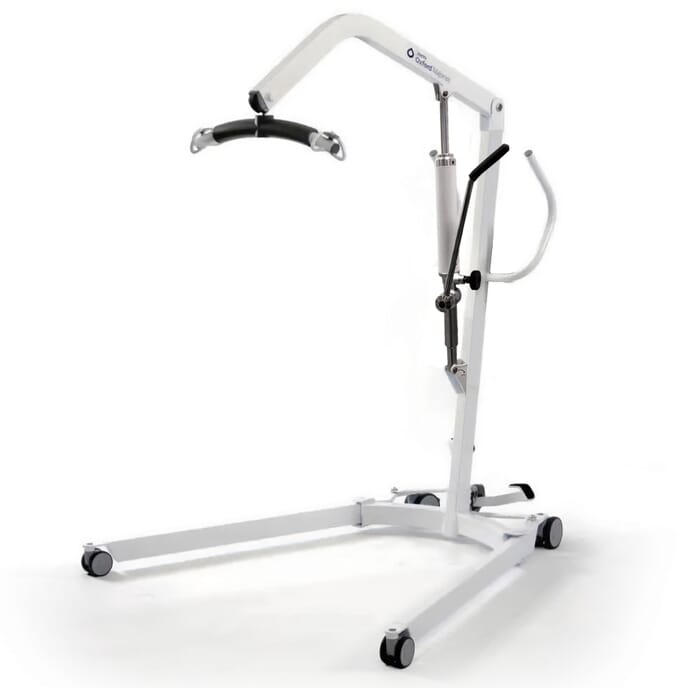

Oxford Major 200 Hydraulic Mobile Hoist
Hydraulic
Product Details
The Oxford Major 200 Hydraulic Mobile Hoist is a thoughtfully engineered mobile hoist that has been designed to handle the most demanding lifting tasks in nursing and institutional care settings. Crafted with precision and care, this exceptional hoist offers a myriad of features and benefits that prioritise both user and caregiver comfort and safety.
At the core of the Oxford Major 200's excellence is its remarkable lifting capacity, handling the most demanding transfer tasks. Despite its robust capabilities, it maintains a lightweight construction, ensuring smooth operation across various lifting scenarios.
Moving this hoist is effortless, thanks to the easy-push, low-profile castors. They glide under most furniture and adapt seamlessly to different surfaces. For added stability during usage, the rear castors come equipped with reliable brakes, prioritising the safety of both the user and caregiver.
Its angled boom facilitates safe lifting from the floor, and the large push handle ensures smooth steering with minimal effort. The padded spreader bar offers patient safety, making transfers as secure and comfortable as possible.
An electric version of the Oxford Major Mobile Hoist can also be found in this area of the website. This is the hydraulic version.
Key User Benefits
- Effortlessly handles demanding transfer tasks
- Lightweight design allows for easy manoeuvrability in various care settings
- Easy-push, low-profile castors glide smoothly under furniture
- Rear castors equipped with reliable brakes
- Angled boom facilitates safe floor-to-chair lifting
- Large push handle ensures smooth steering with minimal effort
- Padded spreader bar enhances patient safety and comfort during transfers
- Manual emergency descent function provides an additional layer of safety
Product Specifications
- Hoist length: 1300mm (51")
- Maximum overall height: 1930mm (76")
- Minimum overall height: 1380mm (54")
- Maximum spreader bar height: 1725mm (68")
- Minimum spreader bar height: 525mm (21")
- Spreader bar height at maximum reach: 1200mm (47")
- Spreader bar height at maximum height: 630mm (25")
- Spreader bar height at minimum height: 490mm (19")
- Maximum reach: 720mm (28")
- Turning radius: 1310mm (51")
- Legs open (external width): 1230mm (48")
- Legs open (internal width): 1140mm (45")
- Legs closed (external width): 660mm (26")
- Legs closed (internal width): 580mm (23")
- Overall height of legs: 100mm (4")
- Ground clearance: 15mm (0.5")
- Front twin castors diameter: 75mm (3")
- Rear braked castors diameter: 100mm (4")
- Mast and boom assembly weight: 23kg (3.6 stone)
- Base assembly weight: 19kg (3 stone)
- Total hoist weight: 42kg (6.6 stone)
- Maximum user weight: 200kg (31 stone)
