Ardoo Caresafe 140 Hoist
Hoist only
Product Details

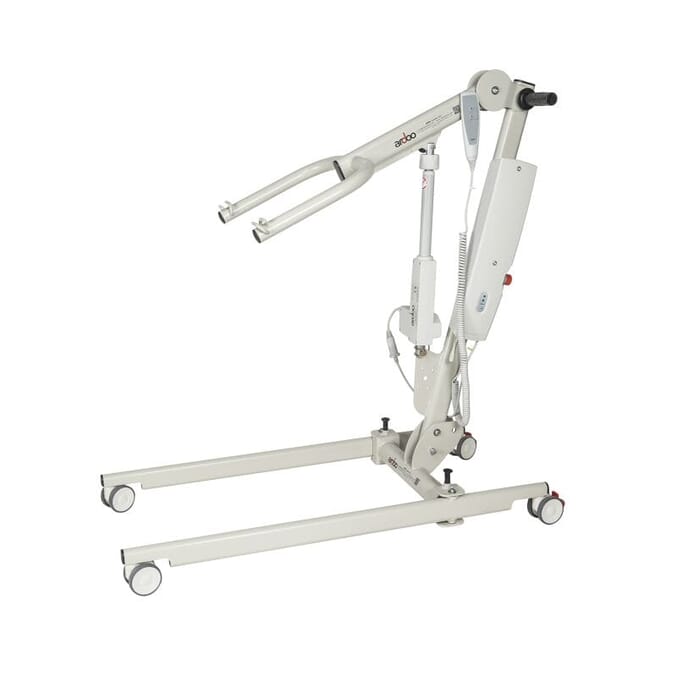

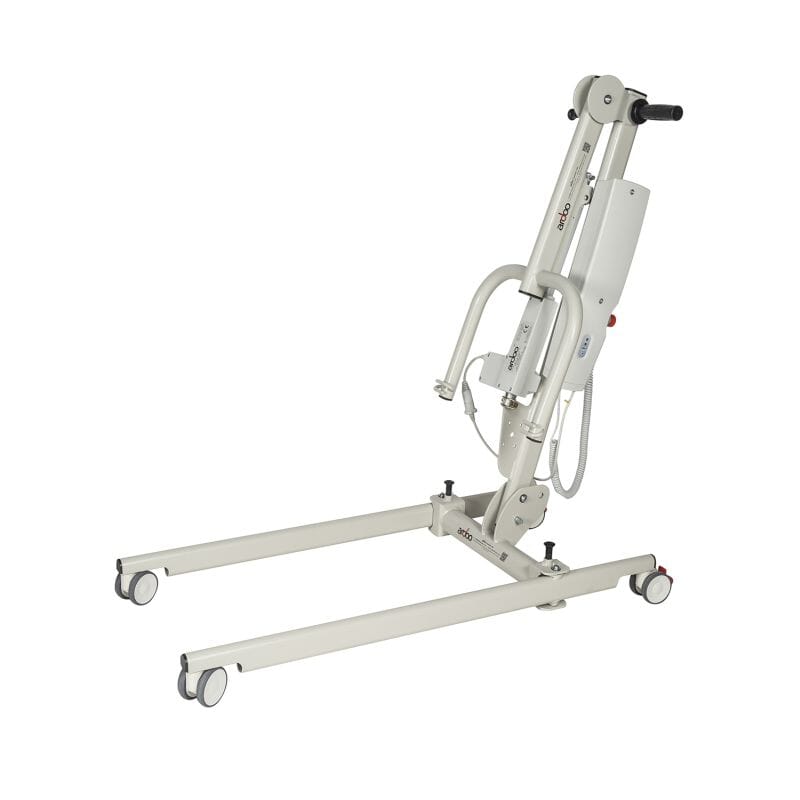

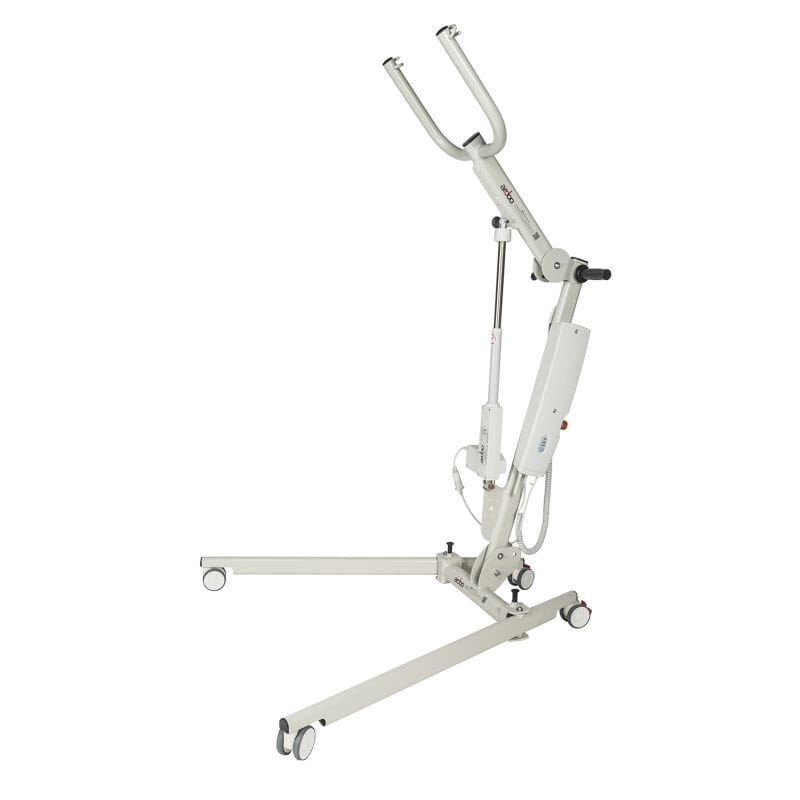

The Ardoo Caresafe 140 hoist is the lightest, most compact, folding portable disability hoist on the market. It is a problem solver – versatile and enhances and improves the quality of life for both the carer and those being cared for.

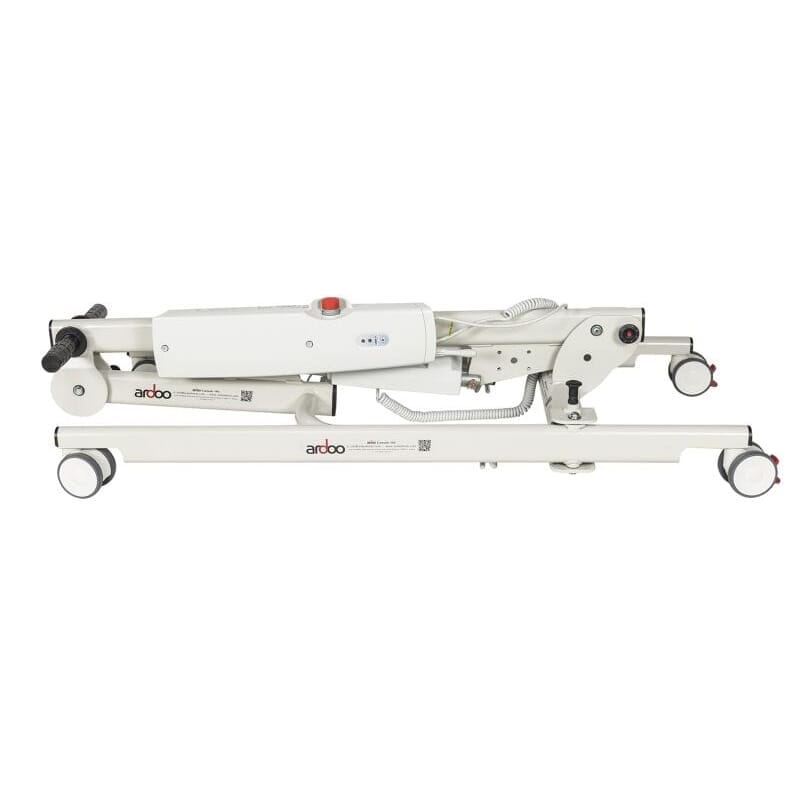

The unique one piece design is easy to erect or fold in 30 seconds or less – no tools needed.
The hoist raises people from their front rather than overhead which enables a much smaller footprint, making it very portable and easy to manoeuvre and store in tight spaces.
The hoist can be used with standard loop slings as available on this website.

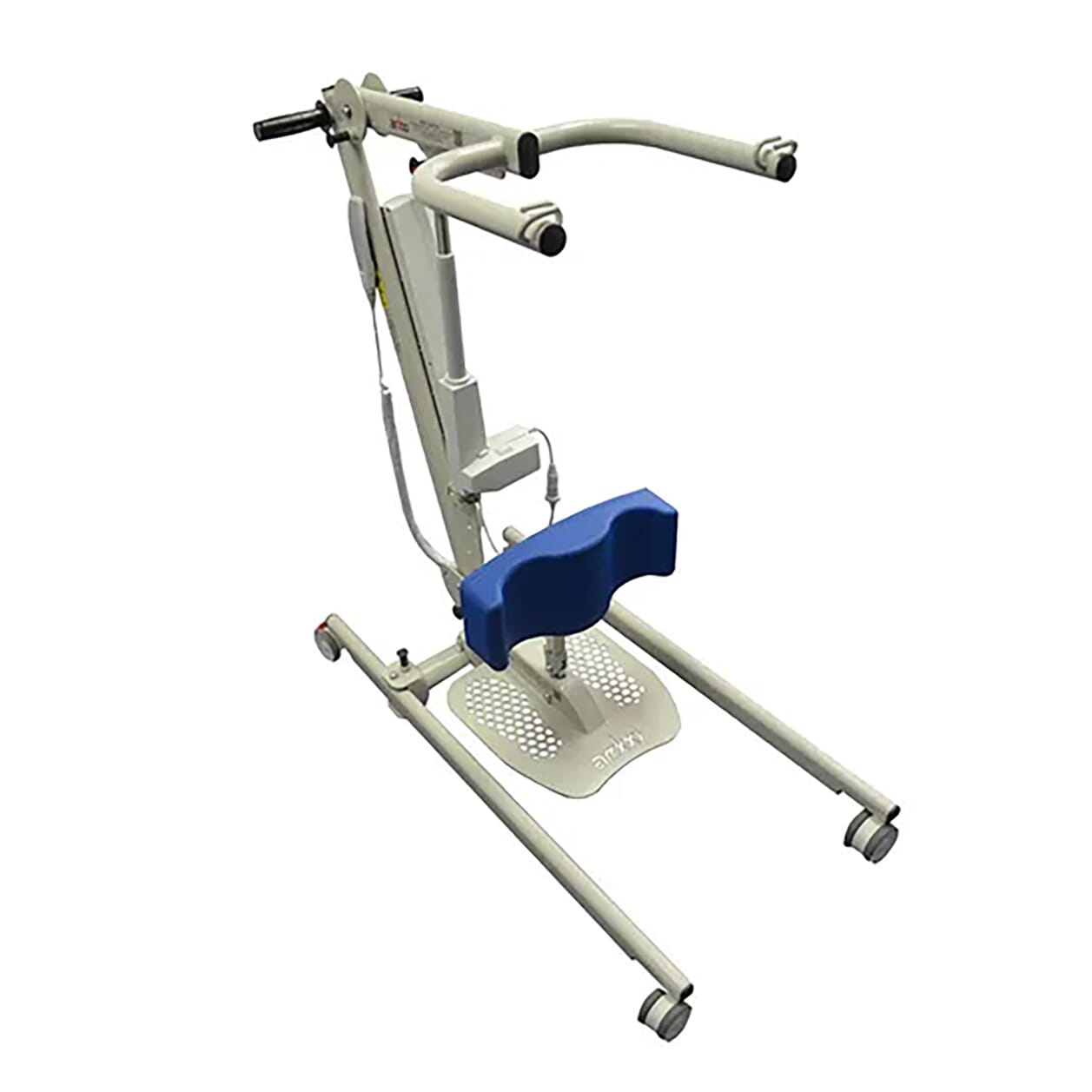

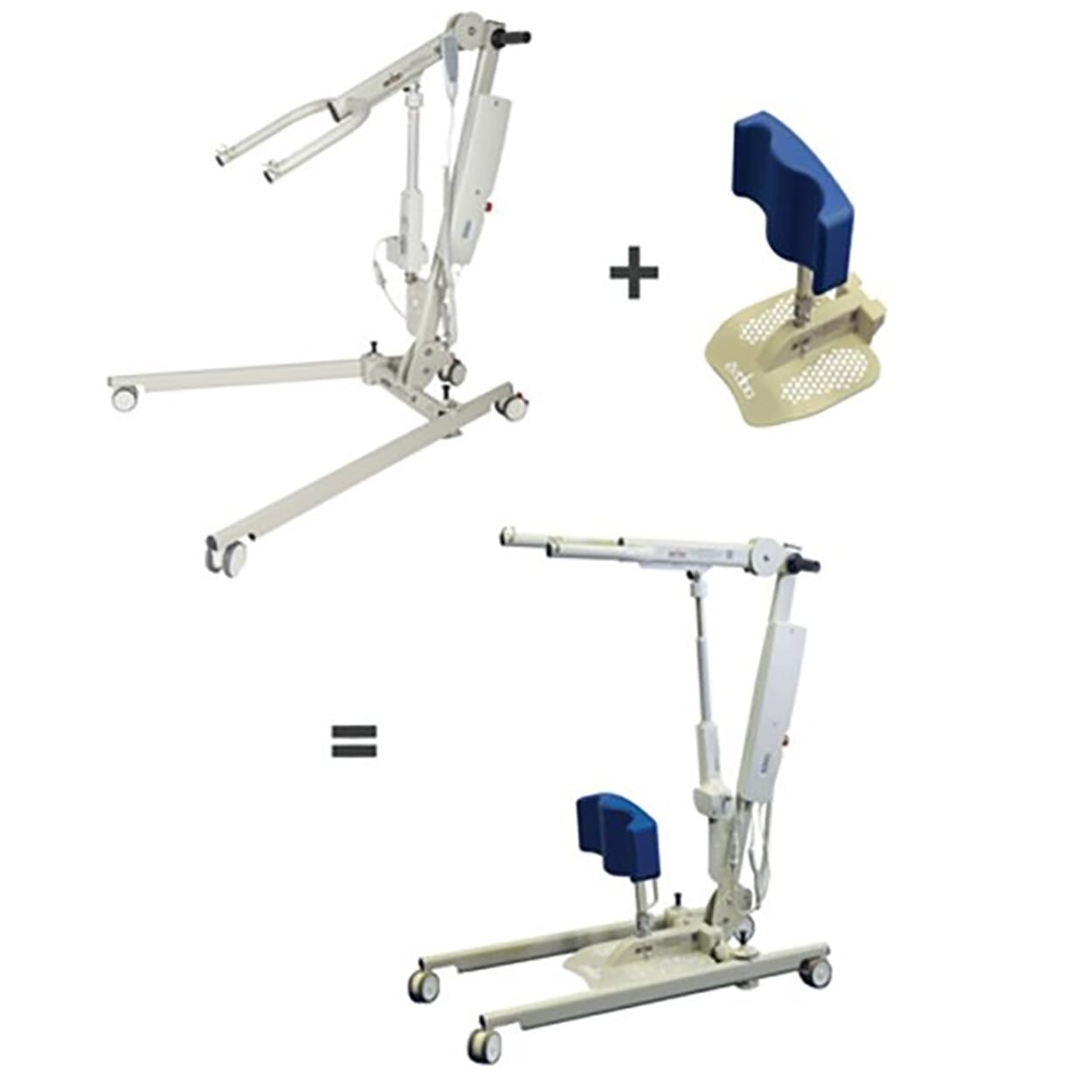

The clever design allows the hoist be adapted for use as a stand aid by adding an optional Stand Aid Conversion Kit which comprises of a one-piece kneepad on a footplate. This footplate can be attached to the Ardoo Caresafe 140 hoist in a matter of seconds with no tools required, allowing the Ardoo Combo to function immediately as a stand aid. The conversion kit weighs less than 8 kg.
Key User Benefits
- The Ardoo Caresafe 140 can be used in the home, a hotel, or to hoist into the car.
- The small footprint allows it to be used in tight spaces, such as a bathroom, and can lift a supine person from the floor.
- It can be used both indoors and outdoors.
- Easy to erect or fold in under 40 seconds – no tools needed. Easily folded and placed in the boot of a car by one person, or can be taken in the hold of an aircraft.
- It enhances and improves the quality of life of the wheelchair user and carer.
- Buy with the optional Stand Aid Conversion Kit to have a hoist and stand aid in one.
Product Specifications
- Safe Working Load: 140kg (22 Stone) (308lbs)
- Assembled Hoist Including Battery: 23kg (51lbs)
- Overall Length: 1070mm (42”)
- Height when folded: 267mm (10.5”)
- Maximum Boom Height (boom lifting hooks): 1650mm (65”)
- Minimum Boom Height (boom lifting hooks): 775mm (31”)
- Turning Radius: 1066mm (42”)
- Internal Width (when legs closed): 420mm (17”)
- External Width (when legs closed): 480mm (19”)
- Internal Width (when legs open): 970mm (38”)
- External Width (when legs open): 1030mm (40.5”)
- Overall Height of Legs: 115mm (4.5”)
- Height of Wheels: 77mm (3”)
- Folded Length: 1143mm (45")
- Folded Width: 482mm (19")
- Folded Height: 267mm (10.5")
- Optional Stand Aid Conversion Kit weighs 8kg
