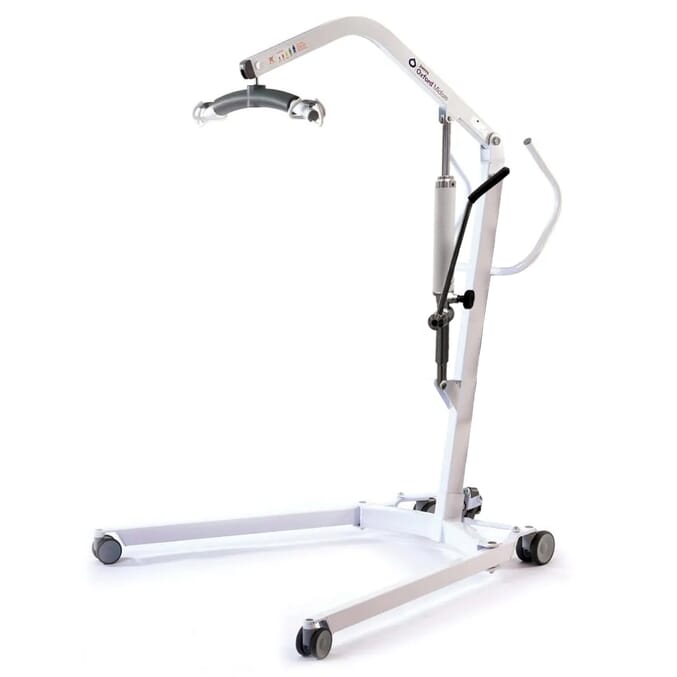

Oxford Midi 180 Hydraulic Mobile Hoist
Product Details
The Oxford Midi 180 Hydraulic Mobile Hoist is the industry standard in homecare, offering exceptional performance within its compact design. With a safe working load of 180kg (28 stone), it's an ideal solution for community and nursing settings, even in spaces with limited room.
Adjusting the hoist's legs is effortless with the ergonomic foot pedal, which securely locks them in place to prevent accidental unfolding. The foot pedal mechanism includes a latch/lock function for hassle-free manoeuvring around objects like beds, chairs, and wheelchairs.
The hoist's low-profile, high-quality castors effortlessly glide beneath most furniture and across various surfaces. The rear castors come with brakes for enhanced safety during operation.
Designed for practicality, the Oxford Midi 180 Hydraulic Mobile Hoist features an angled boom for floor lifting and a generously sized push handle for easy manoeuvrability. To ensure patient safety, the spreader bar is padded.
This is the hydraulic version. An electric version is also available in this category.
Key User Benefits
- Quality and Reliability: Well-designed and robust for long-lasting performance
- Versatile Use: Suitable for home, hospital, and care environments
- Compact and Manoeuvrable: Easy navigation in tight spaces
- High Weight Capacity: Supports users up to 180kg (28 stone)
- Wide Lifting Range: Effective for elevated and lower transfers without height adjustment
- Safety: Ergonomic push bar for caregiver safety and user-friendly hand control
- Accessibility: Pedal-operated leg opening for easy chair or wheelchair transfers
- Stability: Lockable rear castors and low-profile front castors ensure stability and safety during transfers
Product Specifications
- Hydraulic (an electric version is also available)
- Mobile Hoist length: 1225mm (49.5")
- External width (legs open): 1170mm (46")
- Internal width (legs open): 1070mm (42")
- External width (legs closed): 600mm (23.5")
- Internal width (legs closed): 540mm (21.5")
- Overall height of legs: 100mm (4")
- Maximum overall height: 1840mm (72.5")
- Minimum overall height: 1240mm (49")
- Maximum spreader bar height: 1660mm (65")
- Minimum spreader bar height: 525mm (20.5")
- Spreader bar height at maximum reach: 1060mm (42")
- Spreader bar reach at maximum height: 420mm (16.5")
- Spreader bar reach at minimum height: 440mm (17.5")
- Maximum reach: 655mm (26")
- Turning radius: 1235mm (48.5")
- Front castors diameter: 75mm (3")
- Rear castors diameter: 100mm (4")
- Mast and boom weight: 20.5kg (45 lbs)
- Base weight: 11.5kg (25 lbs)
- Mobile hoist weight: 32kg (70 lbs)
- Maximum user weight: 180kg (28 stone)
